DANAE

Features & Specifications

Plumbing

• 3way filtered Tap to Kitchen Sink

• Flick mixer tap to vanity basin

• Isolation valve Manifolds – Internal and External

• Mains Pressure water inlet w/ Fast Fill Connection Hose inlet

• Waste Water Outlet

• 2 x Lockable water tank fillers

• 2 x 95l Water tanks

• 2 x 9kg Silver Gas bottles w/ selector valve and regulator

• 12V Water pump

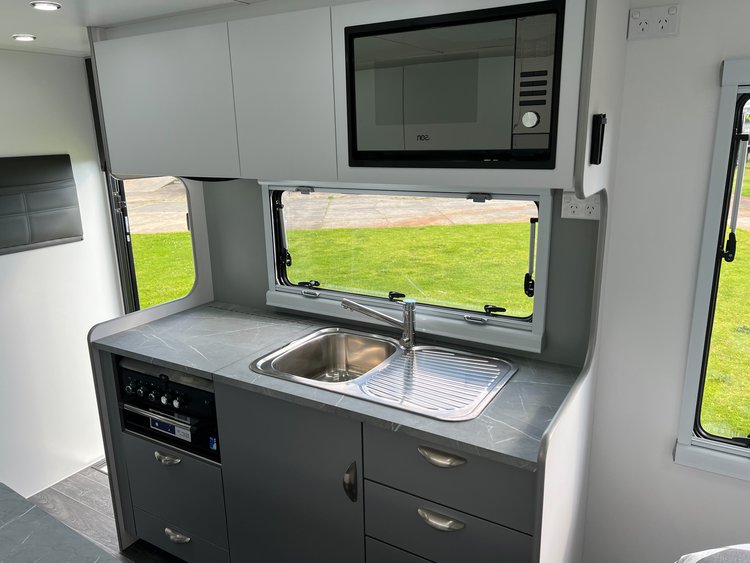

• Deep Bowl Stainless sink w/ Drainer

• A frame Mains Pressure outlet

• External Gas Bayonet

• Digital water tank gauges to trek Display

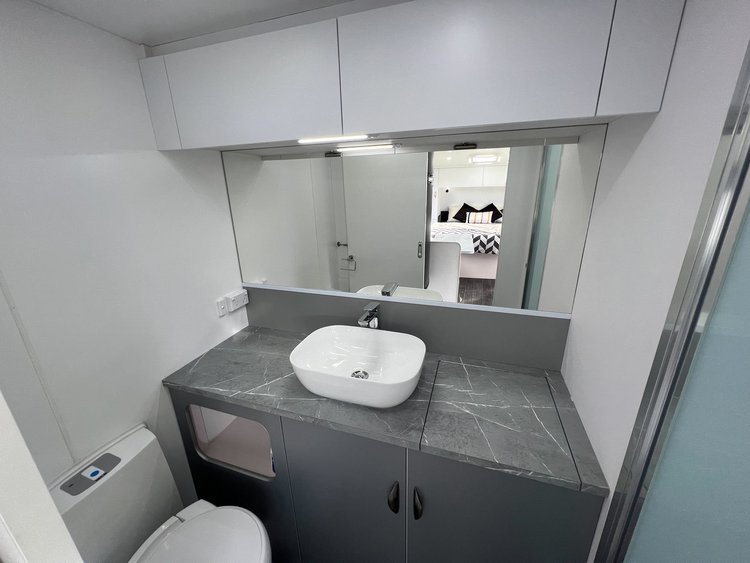

• China vanity to ensuite

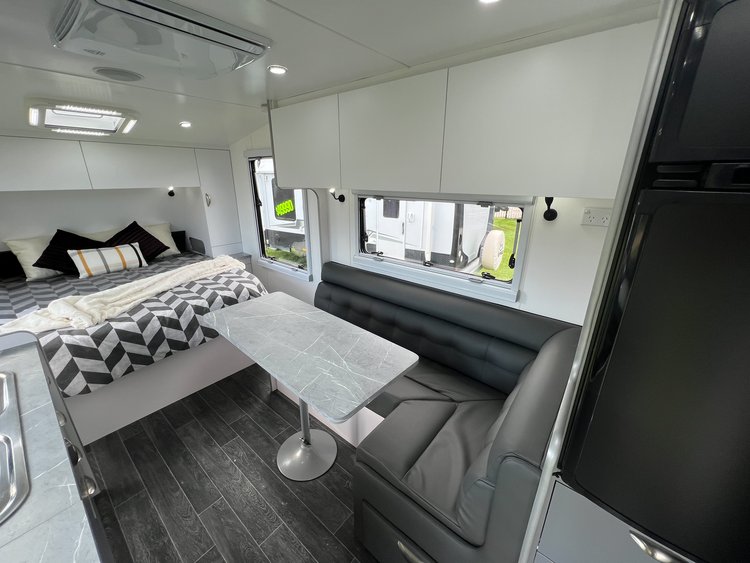

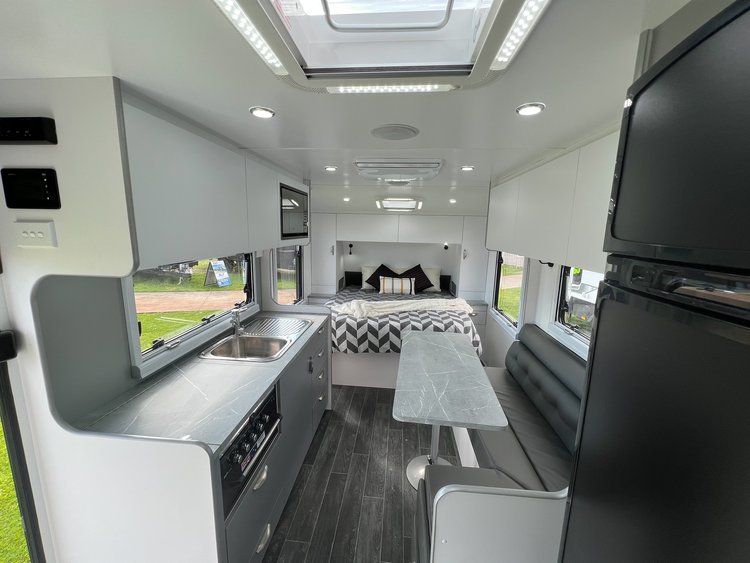

Interior

• Premium Vinyl Flooring

• Bed Head Padding

• One Piece Plywood floor

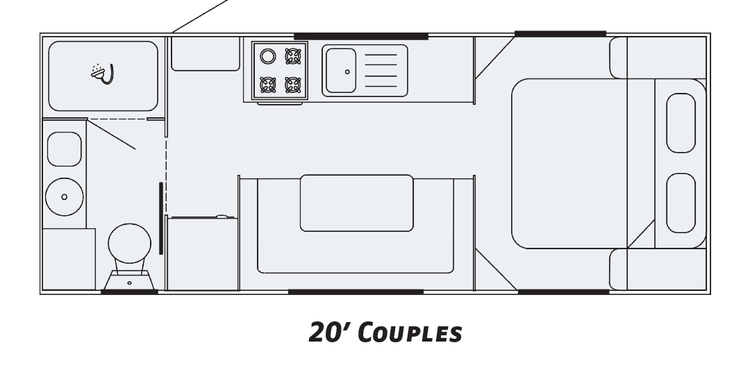

• Concertina door Seperating Bunk Area/ Sliding door couples vans

• Modern Square edge PostForm Benchtops

• Internal Roof height 6 ft 5

• Smoke Detector

• Fire extinguisher

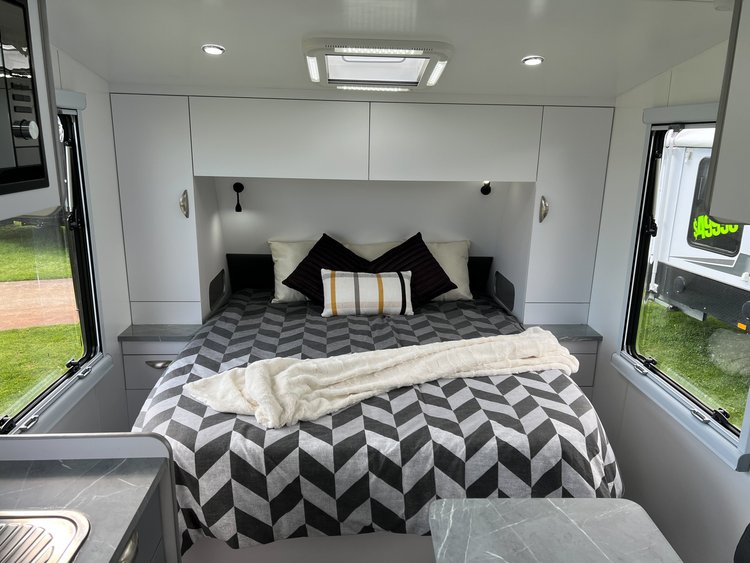

• 6’2 x 5ft Pillowtop innerspring mattress

• Lift up bed on heavy duty struts

• Recessed Cook top with Laminex stove top

• Separate shower and toilet ensuite with glass doors

• LED Lighting Throughout

• Wardrobe cutouts with 12v/USB/240 points

• Linen Cupboard storage

• Premium Soft Closing concealed drawer runners & Soft Close hinges

• Plush Upholstery with integrated upholstered draw

• Rembrandt Caravans Stainless Shower Grate

Chassis

• Supagal Australian Made Chassis

• 6″ Heavy Duty Chassis

• 265/75 All – Terrain Tyres

• 8″ Jockey wheel

• 4T Heavy duty Lift up Jack

• 50mm Ball Coupling

• Heavy Duty 2 Arm Bumper Bar

• Spare wheel fitted to bumper bar

• Lockable Coupling with twin Safety Chains

• 12″ Electric Brakes

• 3.2T GTM Rating

• A Frame tap w/ Checkerplate Protection

• Drop Down Stabilizer legs

• Break-Away Safety System

• Galvanized wheel arches

• Water tank stone guard Protection

• Leaf Spring Suspension

• Roadking Laser cut A Frame Mesh

• Large Jockey Wheel Clamp

• Chassis Mounted Double Battery Box

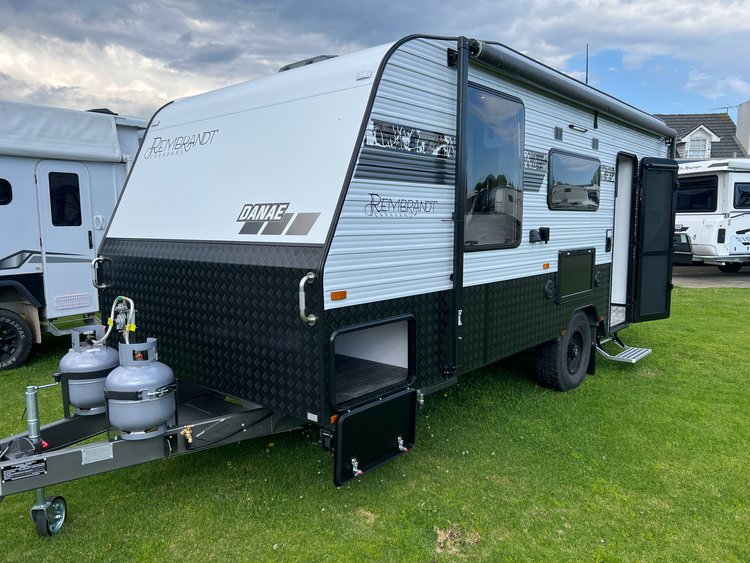

External

• Premium Grade German DiBond Front and Rear

• High Profile Ribbed Cladded sides

• Wrap Around Checkerplate protection – Sides 550High

• Fully insulated Meranti Frame

• Double Glazed Push out european style windows

• Black External Trims

• Metal Grab handles to front of van

• Large fold down picnic table

• Silver Checker-plate footwell to entry

• Roll out Awning

• Full Aluminium Pull out step

• One Piece Fibreglass Roof

Electrical

• LED External Clearance Lights

• Top and bottom LED Tail Lights

• LED Lighting throughout van

• 2 x LED Reading lights in bedroom w/ USB Ports

• 2 x LED Reading Lights in Lounge area w/ USB Ports (and to bunks where applicable)

• Smart Charger Battery Pack – BMPRO SI w/ Trek display and Odyssey Link with Bluetooth Compatability & Built in Regulator

• 1 x 105amp AGM Battery

• 1 x 200W Solar Panel – Current at Max amps 9.7a

• Wineguard HV Sensar Antenna

• 24″ HD Smart TV/DVD/Wifi/ Bluetooth

• AM/FM Radio / CD Head unit

• 2 x Internal Roof Speakers

• 2 x Marine External Speakers

• 12 Pin Trailer Plug with Firdge cooling and charging capabilities

• 3 Gas, 1 Elec Hotplate Mini Grill Oven

• 3 way Gas/Elec AES Fridge w/ Separate Fridge Freezer 175Ltr

• Gree 3.5kw Reverse Cycle A/C with Wifi

• 12V Rangehood with built in LED

• Powerpoints – 2 Bedroom, 1 Kitchen, 1 Lounge, 1 Ensuite

• 240V 15amp Inlet with Circuit Breaker and Earth Leakage sensor

• 240v 10amp Outlet

• Reverse Camera and Car monitor Kit

• TV Coaxial point at picnic Table

• LED Grab handle entry light

• 2 x 12v Fan hatches w Built in LED

• 50amp Anderson Plug

• Portable Solar Charge point

• 5 Fuse independent solar isolation Board
