PALLAS

Features & Specifications

Plumbing

• Gooseneck 3 way filtered Tap to Kitchen sink

• Flick mixer tap to vanity basin

• Isolation Valve Manifold – Internal and external

• Mains Pressure water inlet w/ Fast Fill Connection Hose inlet

• Waste Water Outlet

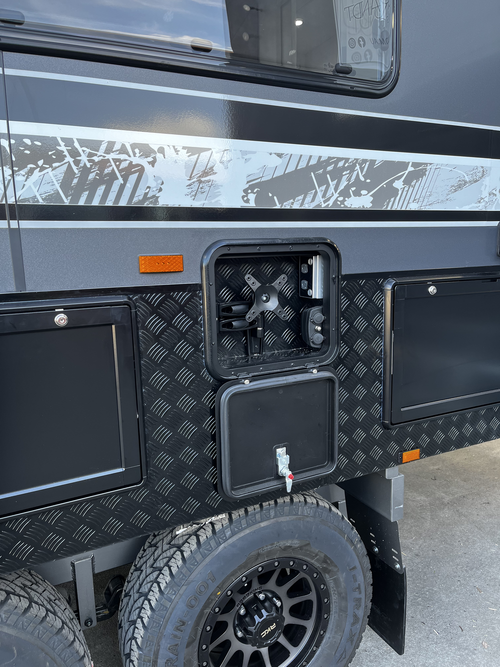

• 2 x Lockable water tank fillers

• 2 x 95l Water tanks

• 2 x 9kg Silver Gas bottles w/ selector valve and regulator

• 12V Water pump

• Deep Bowl Stainless sink w/ Drainer

• A frame Mains Pressure outlet

• External Gas Bayonet

• Digital water tank gauges to trek Display

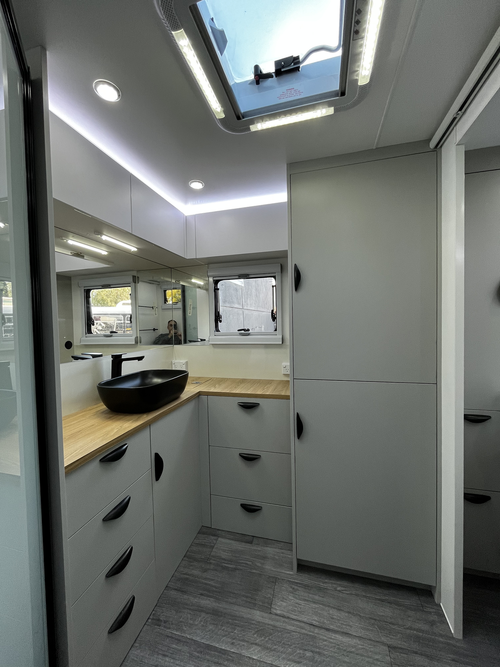

• China vanity to ensuite

• 99 ltr Grey Water Tank

Interior

• Premium Vinyl Flooring

• Bed Head Padding ( Full Height )

• One Piece Plywood floor

• Concertina door Seperating Bunk Area

• Modern Square edge PostForm Benchtops

• Internal Roof height 6 ft 5

• Smoke Detector

• Fire extinguisher

• 6’2 x 5ft Pillowtop innerspring mattress

• Lift up bed on heavy duty struts

• Recessed Cook top with Laminex stove top

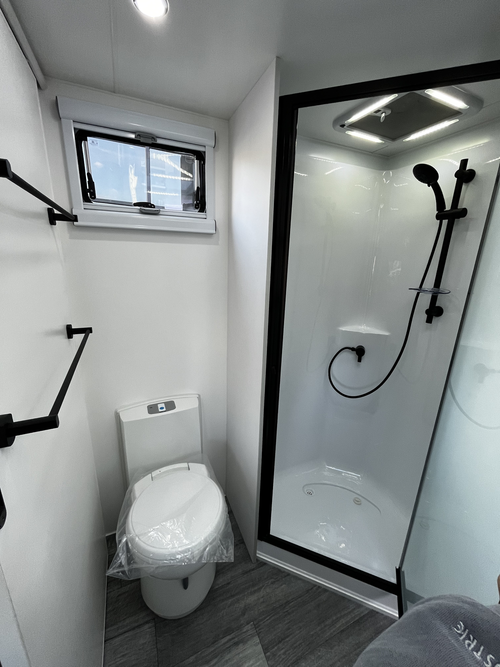

• Separate shower and toilet ensuite with glass doors

• LED Lighting Throughout

• Wardrobe cutouts with 12v/USB/240 points

• Linen Cupboard storage

• Premium Soft Closing concealed drawer runners & Soft Close hinges

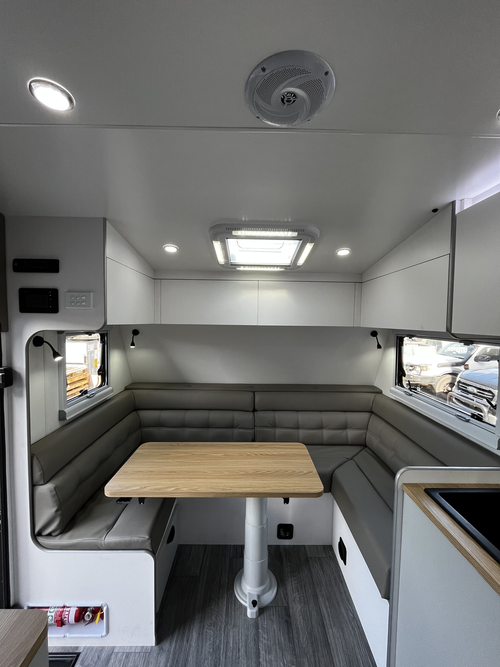

• Plush Upholstery with intergrated upholstered draw

• Rembrandt Caravans Stainless Shower Grate

• Coloured Robe panels at front of van

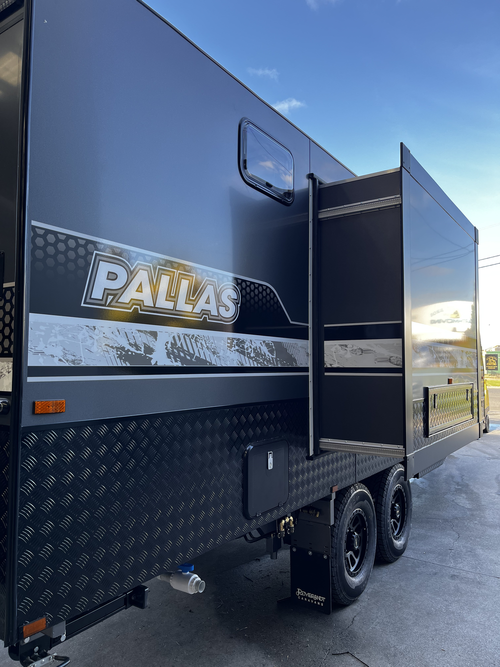

• Full Lippert Slide out system (600mm Room Extension)

Chassis

• Supagal Australian Made Chassis

• 8″ Heavy Duty LAMINATED 4×4 Chassis

• 265/75 All – Terrain Tyres

• 8″ Jockey Wheel

• 4T Heavy duty Lift up Jack

• DO35 Coupling – Recessed

• Heavy Duty 4 Arm Bumper Bar

• Spare Wheel Fitted to Bumper Bar

• Lockable Coupling with Twin safety Chains

• 12′ Electric Brakes

• 4400kg Tuffride Airbag Suspension – Wireless Level 3

• Airbag Control Box

• A Frame tap w/ Checkerplate Protection

• Drop Down Stabilizer Legs

• Break away Safety System

• Galvanized Wheel Arches

• Checkerplate water tank protection

• Large Jockey Wheel Clamp

• Chassis mounted double battery box

• 2 x Jerry Can Holders On bumper bar

• Number Plate Light mounted to Bumper bar

• 300mm A frame extension

External

• Premium Grade German DiBond Full Van

• Wrap Around Checkerplate protection – Sides 600High

• Fully insulated Meranti Frame

• Double Glazed Push out european style windows

• Black External Trims

• 2 x Large fold down picnic table

• Pallas Footwell Entry

• Roll out Awning

• Full Aliminium Pull out step

• One Piece Fibreglass Roof

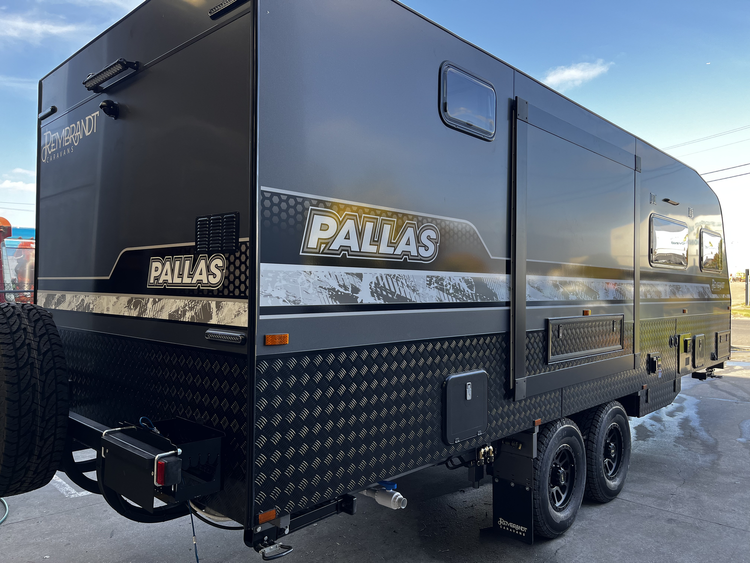

• PALLAS DECALS

• Entertainment hatch – Coast Door 1

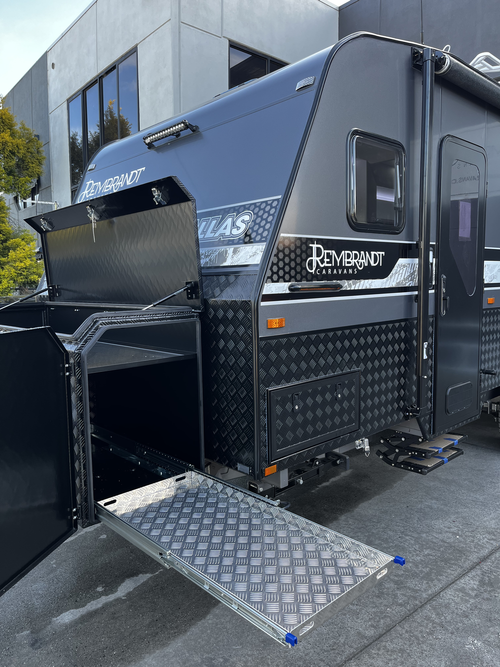

• PALLAS TOOLBOX – 800 x 570 x 1600 – 2 doors x 2 slides x full width shelf and lift up lid

Electrical

• LED External Clearance Lights

• Top and bottom LED Tail Lights

• LED Lighting throughout van

• 2 x LED Reading lights in bedroom w/ USB Ports

• 2 x LED Reading Lights in Lounge area w/ USB Ports (and to bunks where applicable)

• Smart Charger Battery Pack – BMPRO HA LITHIUM READY w/ Trek display and Odyssey Link with Bluetooth Compatability & Built in Regulator

• 1 x 300amp Lithium PROVOLT Battery

• 2 x 200W Solar Panel – Current at Max amps 9.7a

• Wineguard HV Sensar Antenna

• 24″ HD Smart TV/DVD/Wifi/ Bluetooth

• AM/FM Radio / CD Head unit

• 2 x Internal Roof Speakers

• 2 x Marine External Speakers

• 12 Pin Trailer Plug with Firdge cooling and charging capabilities

• 3 Gas, 1 Elec Hotplate Full Fan forced Oven

• 274ltr Compressor Fridge

• Gree 3.5kw Reverse Cycle A/C with Wifi

• 12V Rangehood with built in LED

• Powerpoints – 2 Bedroom, 1 Kitchen, 1 Lounge, 1 Ensuite

• 240V 15amp Inlet with Circuit Breaker and Earth Leakage sensor

• 240v 10amp Outlet

• Reverse Camera and Car monitor Kit

• TV Coaxial point at picnic Table

• LED Grab handle entry light

• 2 x 12v Fan hatches w Built in LED

• 50amp Anderson Plug

• Portable Solar Charge point

• 5 Fuse independent solar isolation Board

• Recessed LED Strip Lights to Overheads

• 2 x 17″ Bar Lights – Front and rear – 3 x annexe lights Dual strip/Orange white
